Manufacturer & Exporters of Premium Range Since 1994

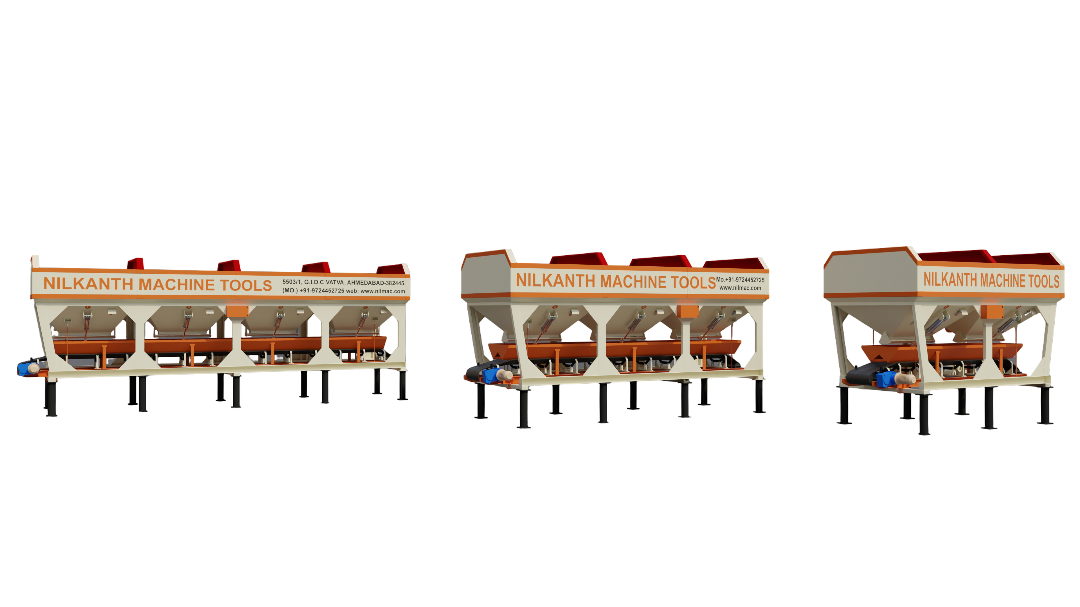

Multiple Bin Weighing System
Mfg. Range -
Manufacturer & Exporters of Premium Range Since 1994
Multiple Bin Weighing System
Mfg. Range - 20 Cu.M/Hr. - 75 Cu.M/Hr
Inquire Here
Heavy Duty Multiple Bin Weighing Systems Designed for Accurate Industrial Material Batching Worldwide
Features
- High-Accuracy Weighing
- Multiple Bin Configuration
- Automated Weighing Control
- Accurate Material Proportioning
- Heavy-Duty Construction
- High Production Efficiency
- Low Material Wastage
- Smooth Material Discharge
- Low Maintenance Requirement
- Customizable Design
Applications
- Chemical
- salt
- fertilizer
- refineries
- agriculture
- plastic
- heavy engineering
- bio chemicals
- Chemical
- salt
- fertilizer
- refineries
- agriculture
- plastic
- heavy engineering
- bio chemicals
Technical Specifications of Multiple Bin Weighing System
| MODEL | SP-20 | SP-25 | SP-30 | SP-45 | SP-60 | SP-75 |
|---|---|---|---|---|---|---|
| Type | Fix/Stationary | Fix/Stationary | Fix/Stationary | Fix/Stationary | Fix/Stationary | Fix/Stationary |
| Output Capacity | 20 Cu.M/Hr | 25 Cu.M/Hr | 30 Cu.M/Hr | 45 Cu.M/Hr | 60 Cu.M/Hr | 75 Cu.M/Hr |
| Storage Hoppers | 2/4 X 2.5 M3 (Each Bins) | 2/4 X 2.5 M3 (Each Bins) | 4 x 5 M3 X | 4 x 5 M3 | 4 x 7 M3 | 4 x 10 M3 |
| Mixer | Pan mixer | Pan mixer | Pan mixer | Pan mixer | Pan mixer | Pan mixer |
| Main Motor | 20 H.P | 25 H.P | 30 H.P | 40 H.P | 40 H.P | 50 H.P |
| Batch Capacity | 0.4 Cu.m / 400 Ltrs. | 0.45 Cu.m/450 Ltrs. | 0.5 Cu.M/500 Liters | 0.75 Cu.M/750 Liters | 1.0 Cu.m/1000 Liters | 1.25 Cu.M/1250 Liters |
| Water Pump | 1.5 H.P | 1.5 H.P | 2.0 H.P | 2.0 H.P | 3.0 H.P | 3.0 H.P |
| Additive Pump | 0.5 H.P | 0.5 H.P | 0.5 H.P | 0.5 H.P | 0.5 H.P | 0.5 H.P |
| Cement Silo | 1.5 T | 1.5 T | 1.5 T | 1.5 T | 2.0 T | 3.0 T |
| Discharge Height | 13 Feet | 13 Feet | 13 Feet | 13 Feet | 13 Feet | 13 Feet |
| Control Cabin | L7xW5xH6 Feet | L7xW5xH6 Feet | L7xW5xH6 Feet | L7xW5xH6 Feet | L7xW5xH6 Feet | L7xW5xH6 Feet |
| Power Required | 47 H.P | 52 H.P | 66 H.P | 81 H.P | 90 H.P | 100 H.P |
Videos
Frequently Asked Questions
A Multiple Bin Weighing System is an advanced weighing and batching solution designed to accurately measure and proportion multiple materials for industrial and construction applications.
The system ensures precise material weighing and batching, helping maintain consistent product quality and efficient production processes.
The system can accurately weigh aggregates, sand, minerals, cement, fly ash, chemicals, fertilizers, and other bulk materials.
Materials are stored in separate bins and discharged into a weighing hopper through controlled gates. High-accuracy load cells measure the material weight before it is transferred for further processing.
Benefits include accurate batching, reduced material wastage, improved product consistency, increased productivity, and minimized manual intervention.
These systems are widely used in concrete batching plants, dry mix mortar plants, sand processing plants, mining, chemical, fertilizer, and material handling industries.
Yes, Multiple Bin Weighing Systems can be customized based on the number of bins, weighing capacity, material type, and production requirements.
The systems are available in various configurations such as 2-bin, 3-bin, 4-bin, 5-bin, and 6-bin arrangements depending on application needs.
