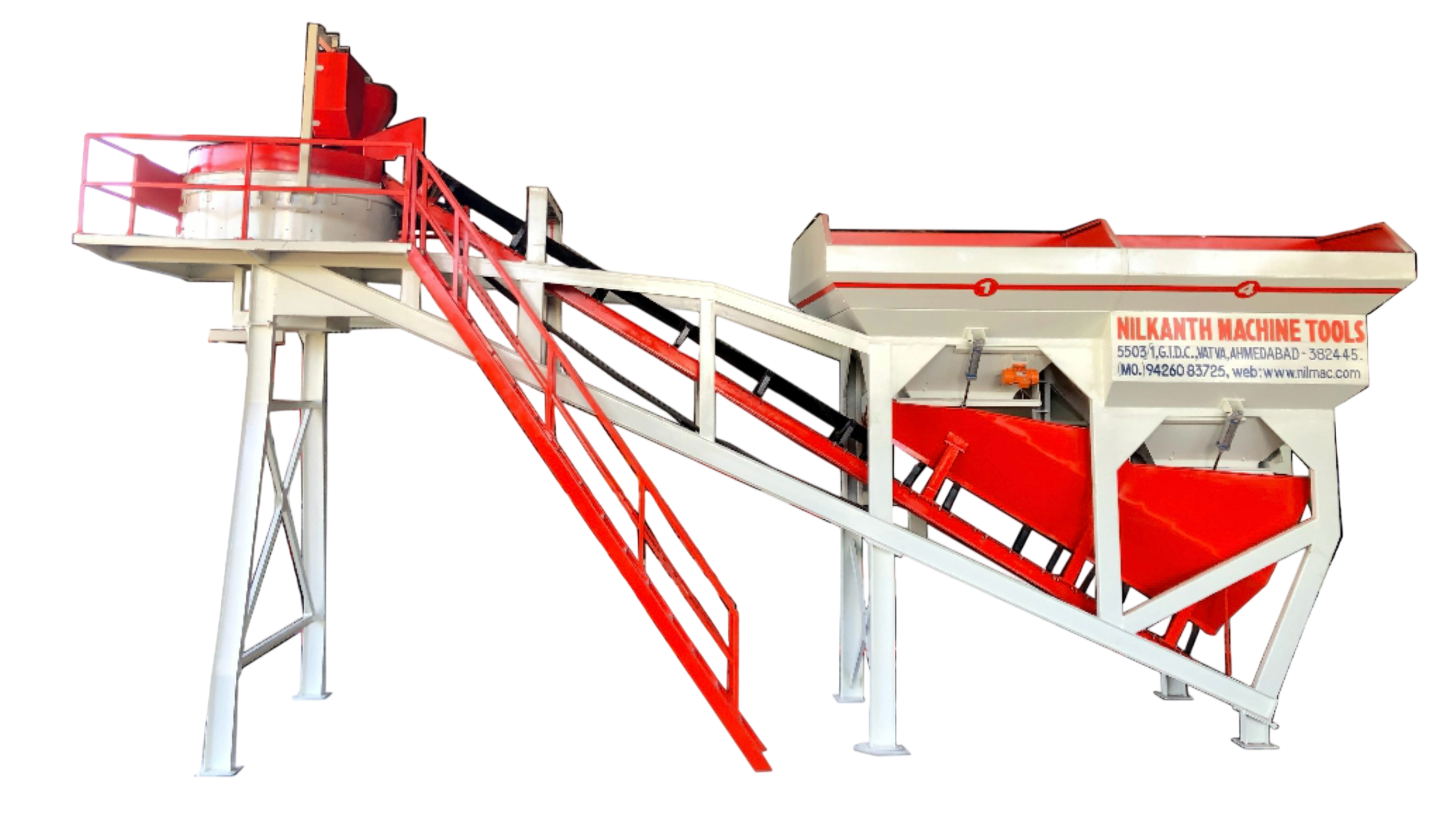

Efficient Compact Concrete Batching Plant (TM Height) for Versatile Concrete Production

A Compact Concrete Batching Plant (TM Height) is specially designed for projects where space is limited but efficiency and performance are still essential. Its optimized height structure allows easy installation in urban or confined areas without compromising on productivity. This type of plant is ideal for medium-scale construction projects, offering a perfect balance between compact design and high output. The TM Height design ensures smooth material flow and efficient mixing operations. Equipped with advanced mixers and automated control systems, the plant delivers consistent and high-quality concrete in every batch. The precise batching system minimizes material wastage while improving accuracy, making it a reliable solution for modern construction requirements.

Built with durable materials and robust engineering, compact batching plants are known for their long service life and dependable performance. They require minimal maintenance and are designed to operate efficiently even in challenging working conditions. The modular structure also allows quick installation and, if needed, easy relocation to different project sites. These plants are widely used in residential, commercial, and small infrastructure projects where space and flexibility are important. With features like energy efficiency, user-friendly controls, and customizable configurations, Compact Concrete Batching Plants (TM Height) provide a cost-effective and efficient solution for quality concrete production.

Features

Applications

Technical Specifications of compact concrete batching plant(TM Height)

MODELCP-20
with TM Height
CP-25
with TM Height
CP-30
with TM Height
TypeCompactCompactCompact
Output Capacity20 Cu.M/Hr25 Cu.M/Hr30 Cu.M/Hr
Storage Hoppers2/4 X 2.5 M33 2/4 X 2.5 M³2/4 x 2.5 M³
MixerPan mixerPan mixerPan mixer
Main Motor20 H.P25 H.P30 H.P
Batch Capacity0.4 Cu.M/400 Liters.0.45 Cu.M/450 Liters0.5 Cu.M/500Liters
Water Pump1.5 H.P1.5 H.P2.0 H.P
Additive Pump0.5 H.P0.5 H.P0.5 H.P
Cement Silo1.5 T1.5 T1.5 T
Discharge Height13 Feet13 Feet13 Feet
Power Required42 H.P47.5 H.P56 H.P
