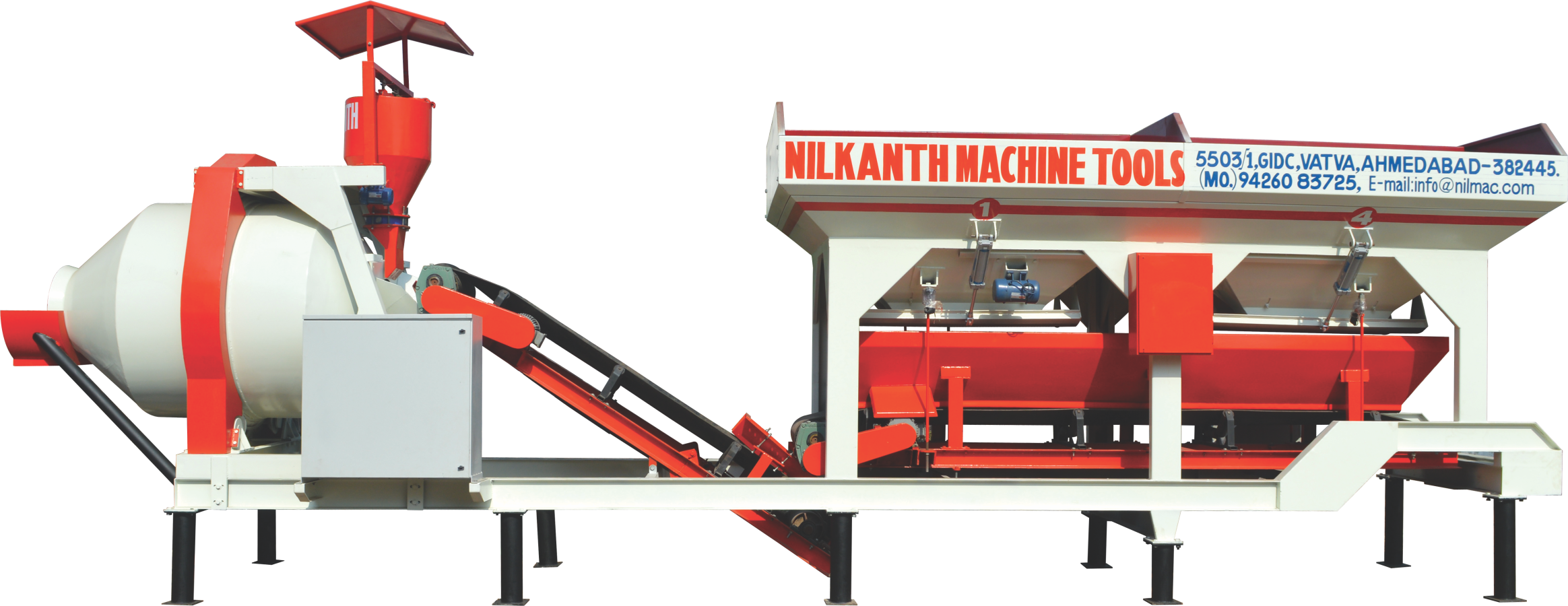

Reversible Concrete Batching Plant
Mfg. Range -
Inquire Here
Reliable Reversible Concrete Batching Plant Exporter and Supplier Worldwide
A Reversible Concrete Batching Plant is a compact and efficient solution designed for producing high-quality concrete with consistent mixing. It uses a reversible drum mixer that rotates in one direction for mixing and in the opposite direction for discharging the concrete. This simple yet effective mechanism makes it ideal for small to medium-scale construction projects where reliability and cost-efficiency are important. The plant is known for its user-friendly operation and easy maintenance. With automated or semi-automatic control systems, it ensures accurate batching of materials such as cement, aggregates, and water. The reversible drum mixing system provides uniform mixing, resulting in strong and durable concrete suitable for various construction applications.
Built with robust materials and durable components, reversible concrete batching plants are designed to perform efficiently in different working conditions. Their compact design requires less installation space and allows quick setup, making them a preferred choice for sites with limited area or temporary project requirements. These plants are widely used in road construction, residential buildings, small infrastructure projects, and rural development works. With benefits like low operational cost, efficient performance, and reliable output, Reversible Concrete Batching Plants offer a practical and economical solution for quality concrete production.
Features
- Reversible Drum Mixing System
- Compact Design
- Accurate Batching System
- User-Friendly Operation
- Low Maintenance Requirement
- Efficient Mixing Performance
- Quick Installation and Setup
- Automated or Semi-Automatic Controls
- Durable Construction
- Cost-Effective Solution
Applications
- building construction
- bridge construction
- road construction
- Canal Construction
- wind mill foundation
- precast concrete industry
- railway projects
- defence projects
- mini & heavy engineering
- irrigation & water project
- building construction
- bridge construction
- road construction
- Canal Construction
- wind mill foundation
- precast concrete industry
- railway projects
- defence projects
- mini & heavy engineering
- irrigation & water project
Technical Specifications of Reversible Concrete Batching Plant
| MODEL | MRCP18 | MRCP-25 |
|---|---|---|
| Output Capacity | 18 Cu.M/HR. | 25 Cu.M/HR. |
| Storage Hoppers | 4 x 2.5 M³ | 4 x 2.5 M³ |
| Mixer | Reversible drum type | Reversible drum type |
| Main Motor | 10 H.P | 15 H.P |
| Batch Capacity | 0.4 CU.M/400 LTRS. | 0.45 CU.M/450 LTRS. |
| Water Pump | 1.5 H.P | 2.0 H.P |
| Additive Pump | 0.5 H.P | 0.5 H.P |
| Cement Silo | 1.5 T | 1.5 T |
| Discharge Height | 1.4 M | 1.5 M |
| Tyre Size | 7.50 X 16-2 Nos and 10.00X20 - 2 Nos (Optional) | 7.50 X 16-2 Nos and 10.00X20 - 2 Nos (Optional) |
| Over All Dimension | 2.4 M (W) X 4.0 M (H) X 10 M (L) | 2.4 M (W) X 4.0 M (H) X 10 M (L) |
| Total Weight | 8,500 KGS. | 9400 Kgs |
| Power Required | 26.0 H.P. | 31 H.P |
